Jacketed glass reactor is designed with double-layer glass. The inner layer can be put into the reaction solvent for stirring and mixing reaction and filtering. The interlayer can be connected with different cold and heat sources (refrigerated liquid, hot water or hot oil) for cyclic heating or cooling reaction.
Features of Our Jacketed Glass Reactor
Corrosion Resistance: Glass reactors are made from high-quality borosilicate glass, which is highly resistant to chemical corrosion. This means that the glass reactor can withstand exposure to harsh chemicals, such as acids and bases, without corroding or degrading over time.
Transparent: One of the most significant advantages of glass reactors is their transparency. The clear glass walls of the reactor allow for easy observation of the reaction taking place inside. This is particularly useful in reactions where color changes or precipitate formation are indicators of reaction progress.
High Temperature Resistance: Borosilicate glass is known for its high-temperature resistance, making it an ideal material for reactors that operate at high temperatures. Glass reactors can handle temperatures ranging from -80°C to 250°C, depending on the specific model.
Precise Temperature Control: Glass reactors are equipped with a jacketed design that allows for precise temperature control during the reaction. The jacket allows for heating or cooling fluid to circulate around the reactor vessel, maintaining a constant temperature inside the reactor. This is essential for achieving consistent results in chemical reactions.
Efficient Mixing: The stirrer in glass reactors provides efficient mixing of the reactants, promoting better contact between the reactants and accelerating the reaction. This leads to faster reaction times and better yields.
Frequency conversion motor: stable operation, large torque, automatic boosting, no spark, no noise, long service life.
Easy Maintenance: Glass reactors are easy to clean and maintain, as the smooth, non-reactive surface of the glass does not allow contaminants to stick to the walls of the reactor. This also means that the reactor can be used for multiple experiments with minimal risk of cross-contamination.
Grouped equipment for jacketed glass reactor
Our customer use cases
Warehouse in USA | Canada | Spain | Thailand
We have warehouses in the United States (Los Angeles), Canada (Vancouver), Spain (Valencia), Thailand (Bangkok), and have a large inventory,no matter which country you are in, you are guaranteed to receive the goods as quickly as possible.
Why Choose us？
1）Jacketed glass reactors now in stock with fast delivery.
2) 2L to 100L for Choice.
3) With 13 years of experience in R&D and production of Jacketed glass reactor.
4) Provide you with premium quality products and perfect after-sales service.
5) Premium quality with CE certification.
6) Factory direct sales with competitive price.
7) Provide one-stop Extraction Turnkey Solution.
Parameter
Model | Power(W ) | Stirring Speed(rmp) | Diameter | Capacity(L) | Power Supply | Motor Torque(g/cm) |

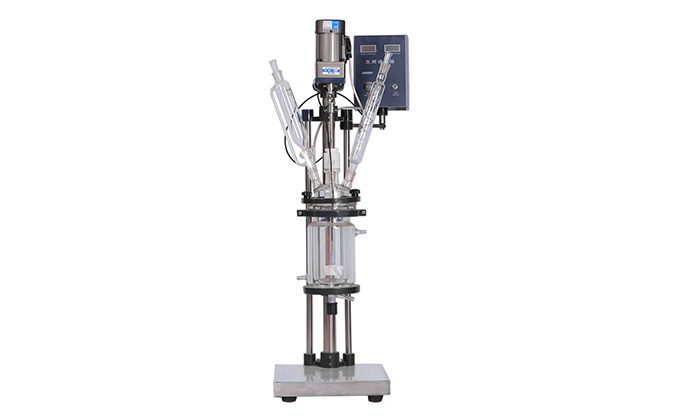

S-1L | 60 | 0~600(Max.1300) | 12 | 1 | 220V 50/60 Hz | 2000 |
S-2L | 60 | 0~600(Max.1300) | 12 | 2 | 220V 50/60 Hz | 2400 |
S-3L | 60 | 0~600(Max.1300) | 12 | 3 | 220V 50/60 Hz | 2400 |

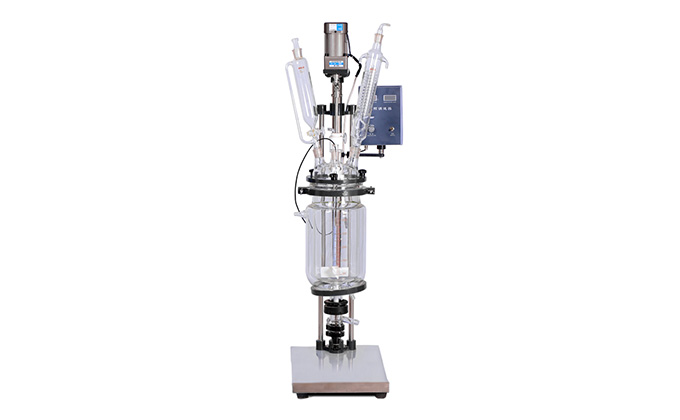

S-5L | 60 | 0~600(Max.1300) | 12 | 5 | 220V 50/60 Hz | 4800 |
S-10L | 120 | 0~600(Max.1300) | 12 | 10 | 220V 50/60 Hz | 1000 |

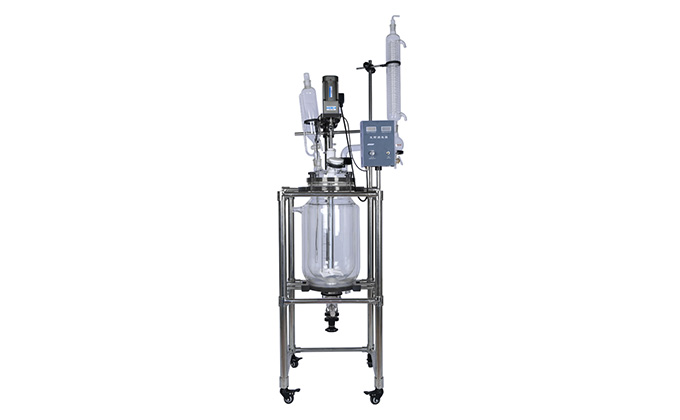

S-20L | 120 | 0~600(Max.1300) | 12 | 20 | 220V 50/60 Hz | 1200 |
S-30L | 120 | 0~600(Max.1300) | 12 | 30 | 220V 50/60 Hz | 1200 |
S-50L | 120 | 0~600(Max.1300) | 12 | 50 | 220V 50/60 Hz | 1500 |

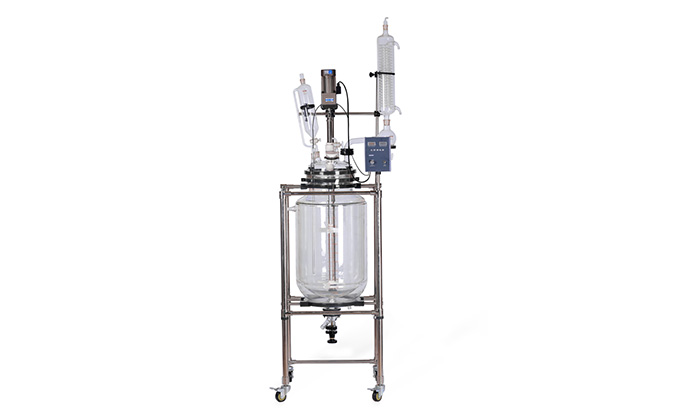

S-100L | 250 | 0~600(Max.1300) | 15 | 100 | 220V 50/60 Hz | 3000 |
Model | Power(W ) | Stirring Speed(rmp) | Diameter |
S-1L | 60 | 0~600(Max.1300) | 12 |
S-2L | 60 | 0~600(Max.1300) | 12 |
S-3L | 60 | 0~600(Max.1300) | 12 |
S-5L | 60 | 0~600(Max.1300) | 12 |
S-10L | 120 | 0~600(Max.1300) | 12 |
S-20L | 120 | 0~600(Max.1300) | 12 |
S-30L | 120 | 0~600(Max.1300) | 12 |
S-50L | 120 | 0~600(Max.1300) | 12 |
S-100L | 250 | 0~600(Max.1300) | 15 |
